Digital PD Meter
Not for sale in the EU. Not CE marked.
Easy and Accurate Operation

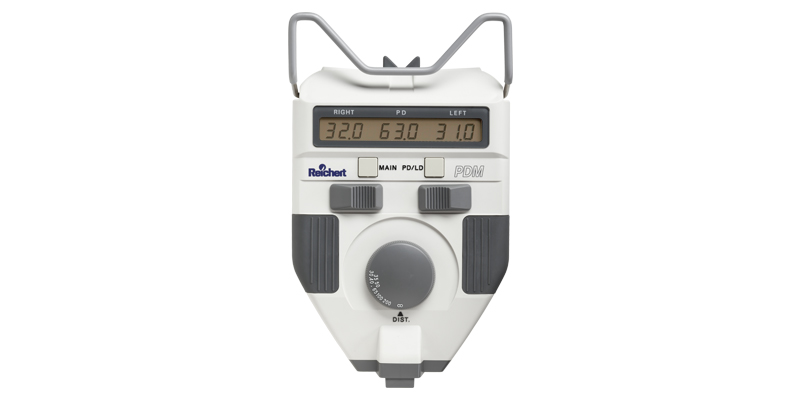

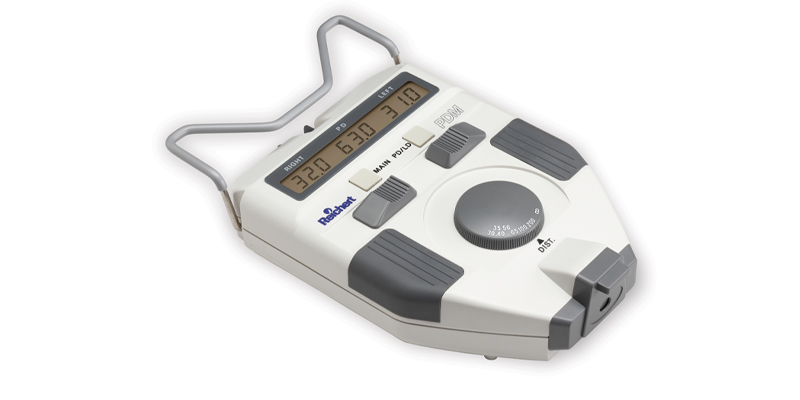

Obtaining accurate inerpupillary measurements with the PDM is easy. Operators simply align the measuring lines to the Purkinje images on the patient's corneas. Measurement data can be obtained for a single eye, or both eyes, and results are accurate to within 0.5 mm. Interpupillary distance for a range of focusing points can be obtained by selecting the appropriate focus distance on the circular dial. The PDM's LCD displays measurement data in a clear, easy-to-read format.

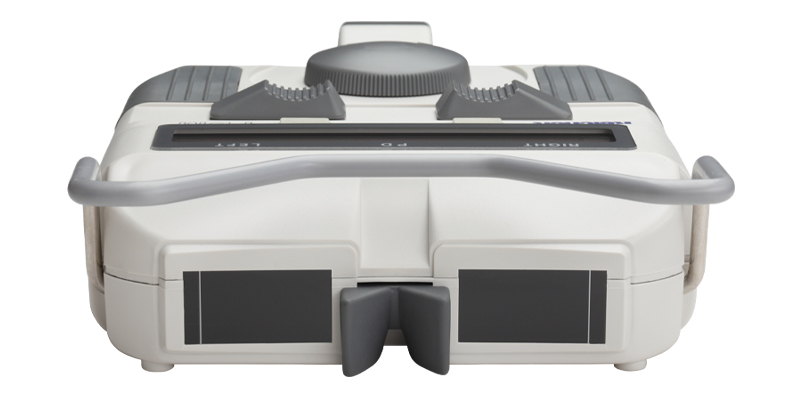

The PDM is ergonomically designed to be easy to hold and measure at the same time, while the forehead bar fits the patient's forehead comfortably. The PDM controls operate smoothly and are easy to adjust.
Long Battery Life
The PDM automatically switches off after one minute of inactivity to ensure long battery life. In addition, the patient fixation target is illuminated by a low-power LED, further extending battery life and ensuring virtually maintenance-free operation.
The Reichert name ensures a high quality, reliable instrument that you can count on every time.
Method of Measurement:
Cornea reflection light coincidence method
46 to 82 mm (Total PD)
23 to 41 mm (Each eye)
Internal green dot on illuminated background
1.5lbs., 0.7 Kg
2in., 5.08 cm
6in., 15.24 cm
9in., 22.86 cm
30 cm to Infinity
6V DC (Four AA batteries)
