Reichert® 7CR

Auto Tonometer + Corneal Response Technology®

The Reichert 7CR from Reichert Technoligies utilizes a patented bi-directional applanation process to characterize the biomechanical properties of the cornea and reduce their impact on the IOP measurement. This measurement, referred to as Corneal Compensated IOP (IOPcc) is minimally affected by corneal visco-elastic properties, thickness, or surgical procedures such as LASIK or PRK. As such, IOPcc is a better indicator of glaucoma risk than other methods of tonometry, including Goldmann Applanation.

The Reichert 7CR is more clinically valid in all subjects, including: normal tension glaucoma patients, primary open angle glaucoma patients, post-LASIK and refractive surgery patients, patients with Fuchs' or corneal edema, keratoconus patients, and patients with thick, thin, or otherwise biomechanically atypical corneas.

  • Details
  • Videos
  • Specs
  • Articles
  • Brochures
  • Instructions
  • Software
  • Related Items



Waveform Score Ensures Reliability of Results

The Reichert 7CR employs an advanced signal-scoring feature that helps ensure the accuracy and reliability of measurement results. Each measurement is assigned a score based on internally-processed signal analysis algorithm. Scores below a certain threshold are indicated as unreliable. When multiple measurements are taken on the same eye, an intelligent averaging technique provides a weighted average, dependent upon the waveform score. No other tonometer provides operators with objective feedback about the quality of the measurement taken!



Non-Contact Measurement Methodology

Alignment and measurement with the Reichert 7CR are FULLY AUTOMATED. A collimated air-jet provides gentle force to the cornea while an electro-optical system monitors the applanation process. The result is a rapid measurement that is comfortable and non-intimidating for the patient and simple for any operator to execute. Best of all, the measurement is non-contact so no anesthesia is required and there is no risk of cross contamination.





Automatic, Real-Time Applanation Control

The Reichert 7CR applanation detection system monitors the change in corneal curvature in real time, recording 400 data samples during the 25 millisecond measurement process! This unique feature ensures that the appropriate applanation force is automatically delivered to each eye being measured.




User and Patient Friendly

The all-new touch screen interface features an easy-to-use icon-based operating system enabling even inexperienced users to make measurements in seconds. The full color display guides the operator through the measurement process showing everything from the alignment of the eye, to the display of the readings.
Patients simply lean against the forehead rest while the fully automated alignment and measurement takes place.

The speed and simplicity of the Reichert 7CR are unlike any other tonometer!




Reichert 7CR Has These Great Features

  •  Easy-to-use, touch screen interface
  •  Patients simply lean against the forehead rest
  •  Alignment is completely automated
  •  One-touch, triple measurement mode
  •  Clearly displays all measurement data
  •  Internal printer simplifies record keeping
  •  Electronic data transfer via USB port
  •  Optional Chinrest

Catalog Number: 16060
Weight: 23 lbs., 10.4 kg
Height: 19.75 in., 50.2 cm
Width: 10.5 in., 26.7 cm
Depth: 14 in., 35.6 cm
Voltage: 100-240 VAC
Frequency: 50/60 Hz
Measurement Range: 7 - 60 mmHg (ISO 8612 tonometer standard)

Optional Chinrest Specifications:
Catalog Number:
16049
Vertical Travel: 65 mm, motorized

TitleOptometric Management - Improve Standard IOP Measurements
TitleOptometry Times - Reichert® 7CR Helps with Diagnosis, Treatment
Title
Document
Download Link
Optometric Management - Improve Standard IOP Measurements
DocumentOM-07-2010
Download Link Download
Optometry Times - Reichert® 7CR Helps with Diagnosis, Treatment
DocumentOT-01-2010
Download Link Download
TitleReichert® 7CR - Brochure
Title
Document
Download Link
Reichert® 7CR - Brochure
DocumentReichert-7CR-0410
Download Link Download
TitleReichert® NCT - Clean Position Windows Bulletin
TitleReichertCapture® EMR Interface Software - User's Guide
TitleReichert® 7 Series Chinrest - Installation Procedure
TitleShipping Insert Removal Instructions

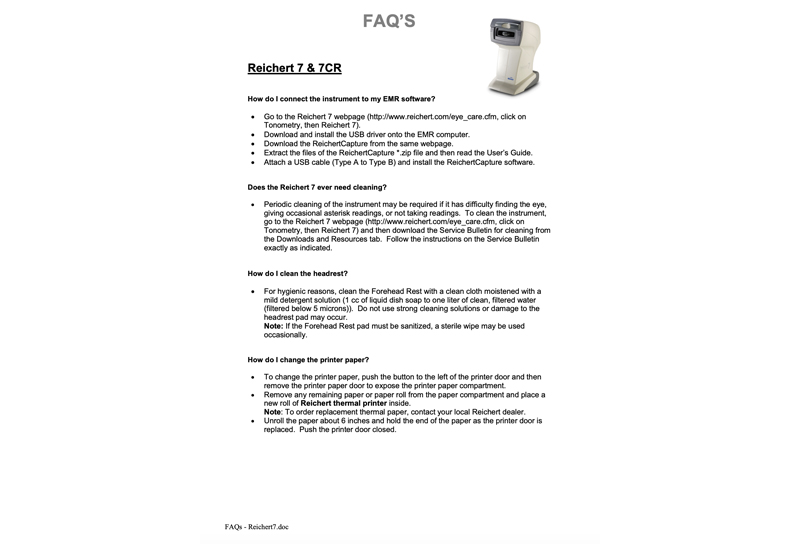

TitleReichert® 7 & 7CR Auto Tonometer - FAQs

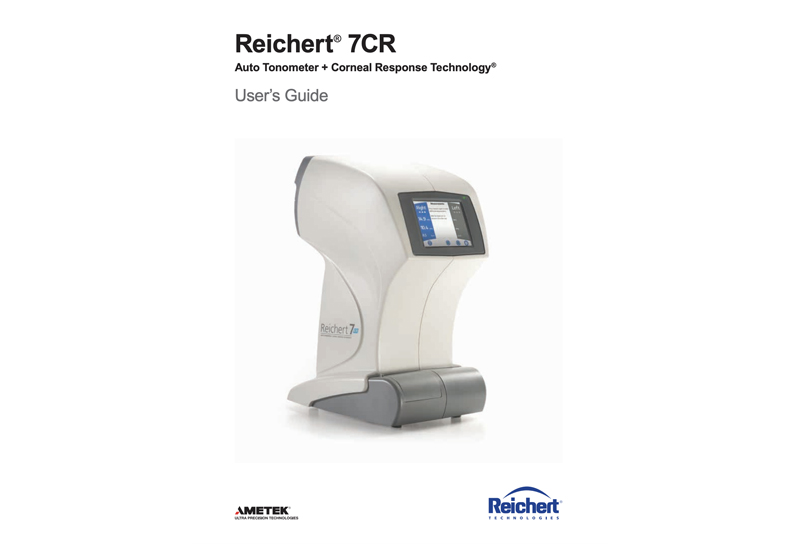

TitleReichert® 7CR - User's Guide
TitleCleaning & Disinfection Matrix

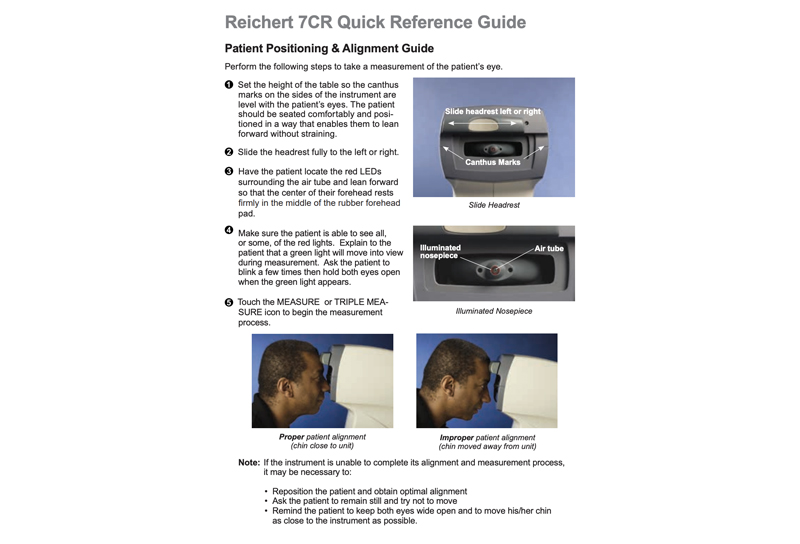

TitleReichert® 7CR - Quick Reference Guide

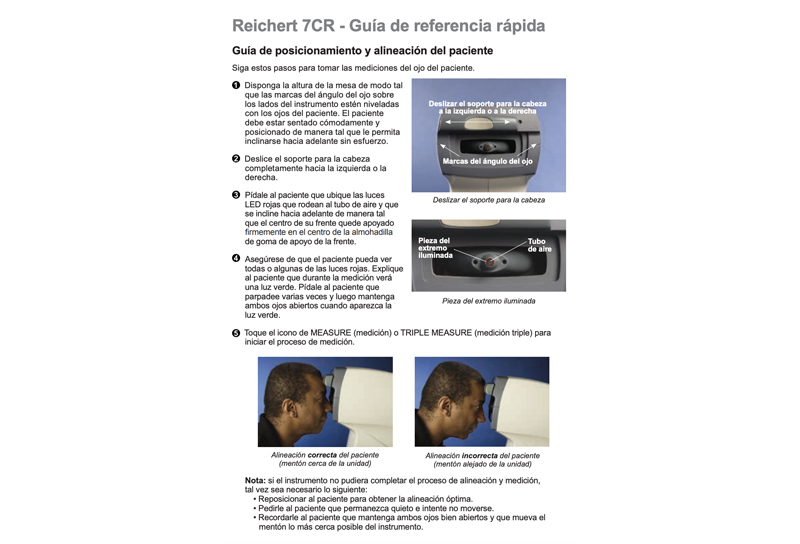

TitleReichert® 7CR - Quick Reference Guide - Spanish

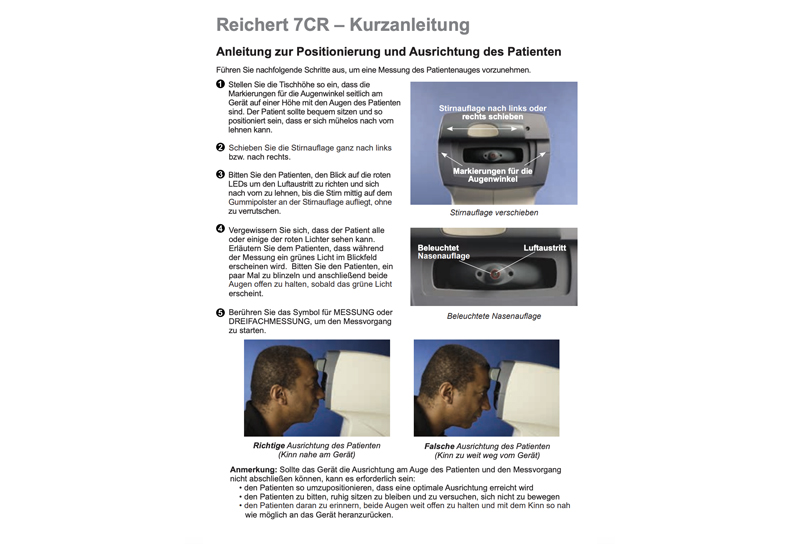

TitleReichert® 7CR - Quick Reference Guide - German

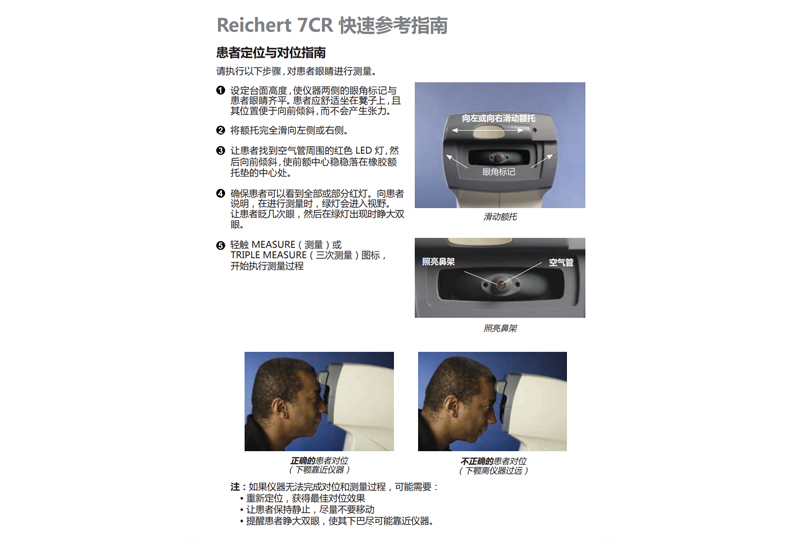

TitleReichert® 7CR - Quick Reference Guide - Chinese
TitleReichert® 7CR - User's Guide - Spanish

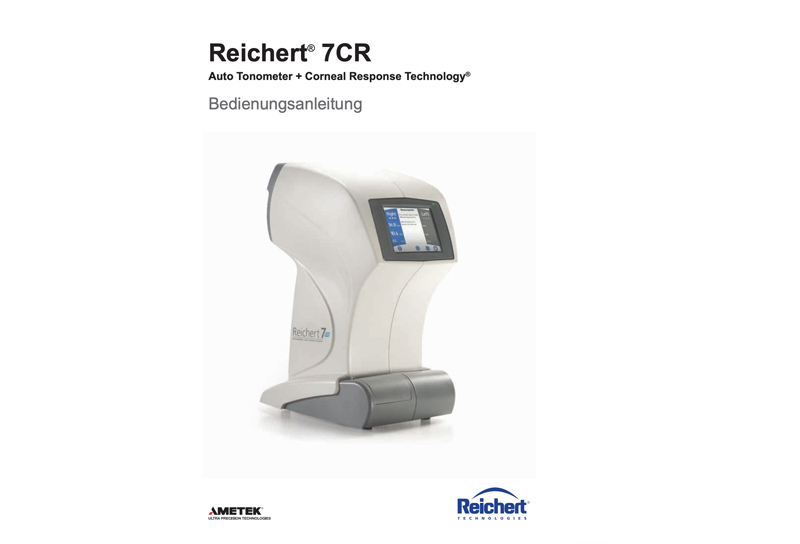

TitleReichert® 7CR - User's Guide - German
