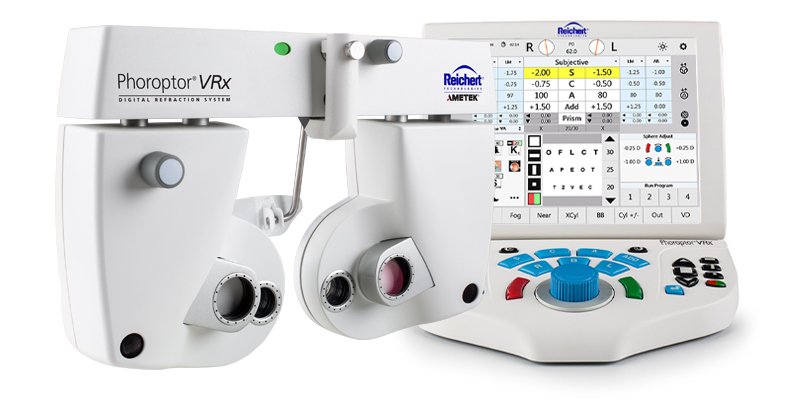

Phoroptor® VRx

Digital Refraction System

Refract safely from across the room or across the internet. Exceed your patients' expectations with a premium refraction experience. Featuring the thinnest, most compact design, incredibly fast lens exchange, and ultra-quiet operation, Reichert® Phoroptor® VRx Digital Refraction System sets a new standard in refraction. Phoroptor VRx is designed & assembled in the USA. Phoroptor is a registered trademark of Reichert, Inc.

Experience a Phoroptor VRx Live Virtual Demo! Explore the benefits of having a Phoroptor VRx Digital Refraction System from the comfort of your home or office, at a time that fits your schedule, with one of Reichert's Application Specialists.

Reichert Remote Learning Series Webinar: Safe and Comprehensive Refractions; from Across the Room to Across the Internet. James Thimons, OD, and President and Founder of DigitalOptometrics, Howard Fried, OD, discussed how digital Phoroptors and remote refraction has been embraced to maximize efficiency and help keep patients and staff safe. Watch this webinar and see the complete Reichert Remote Learning Series.
  • Details
  • Videos
  • Specs
  • Articles
  • Brochures
  • Instructions
  • Software
  • Related Items





Efficiently Balancing Practice and Personal Life

Multitasker Lisa Genovese, OD, talks about using technology to more efficiently balance Insight Eye Care's multiple locations with being a role model parent.






A Premium Refraction Experience – Phoroptor® VRx.

When building Eyesite, Benjamin Peters, OD & Justin Verrone, OD understood the importance design plays in their patients' experience.






Inventing and reinventing Reichert's legacy in refraction.

For over 90 years, the Phoroptor® name has been synonymous with the world's finest refracting instrument. Phoroptor® VRx continues with the same legendary engineering, quality, craftsmanship, and reliability – now with the speed and efficiency of a digital refraction.

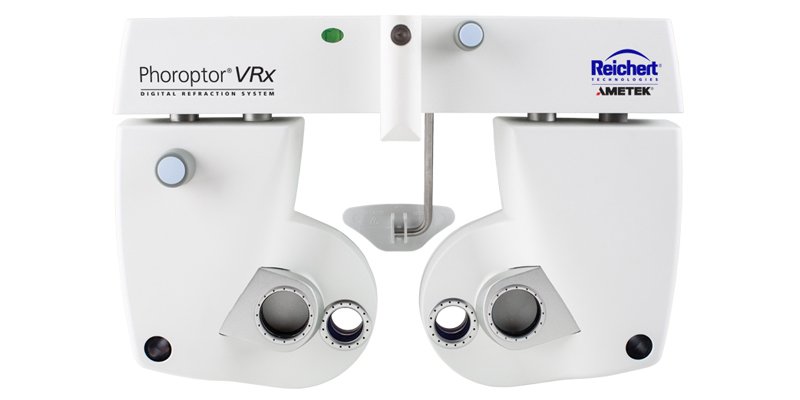

Smallest design. Biggest impression.

 With the most compact digital refractor head available (12.2 W x 8 H x 2.8 D in. at a 64 mm PD), Phoroptor VRx is non-intimidating and allows for greater patient visibility. The sleek, refined and high-tech styling of Phoroptor VRx will impress all your current patients and help gain new ones.

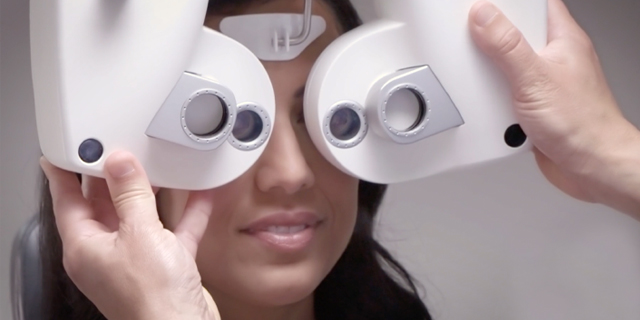

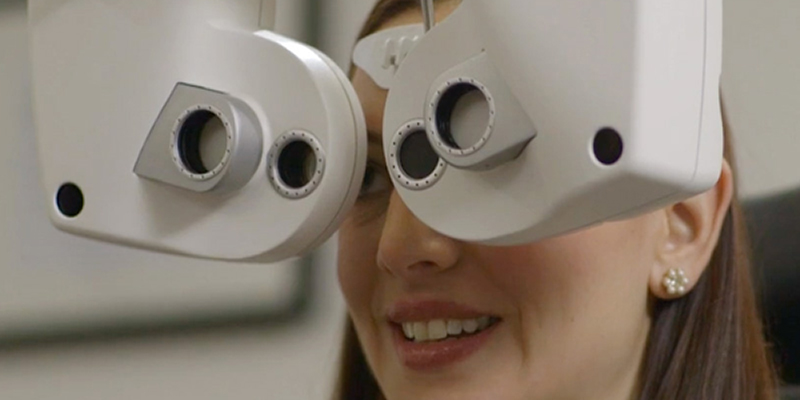

The thinnest Phoroptor yet.

To prevent patients from experiencing tunnel vision, Phoroptor VRx has the thinnest lens profile amongst digital refractors, at 26 mm. In fact, Phoroptor VRx has a thinner aperture than a manual Phoroptor.

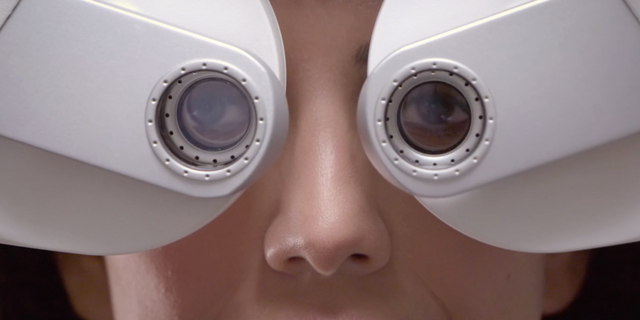

Retractability with unique prism lenses.

To achieve the thinnest lens profile, Phoroptor VRx has external motorized prism lenses that slide in and out only as needed.




Premium parts and assembly.

Premium motors and metal housing provides Phoroptor VRx with incredibly fast and ultra-quiet lens exchanges. Unlike other digital refactors, your patients will hardly notice the lens movement. Phoroptor VRx is designed and hand-assembled by skilled technicians in Buffalo, New York, USA.





Jackson Cross Cylinder, Smart Cylinder, and Split Cylinder.

Refinement of cylinder power and axis can be accomplished using the familiar Jackson Cross Cylinder or the innovative Smart Cylinder method where cylinder power and axis are automatically bracketed based on the amount of cylinder in the patient’s prescription. Phoroptor VRx also features a Split Cylinder mode, where patients are simultaneously presented with two targets.

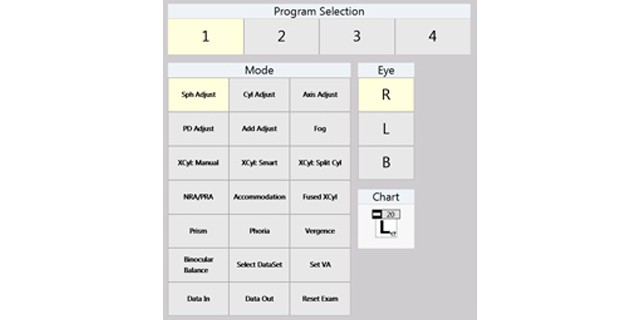

Pre-programmed & programmable tests.

To increase efficiency and allow refraction to be delegated to trained technicians, Phoroptor VRx has pre-programmed and programmable test options. You can choose from pre-programmed tests including astigmatism, phoria, binocular balance, and near vision. Customize up to four user programmable sequences that can be easily modified or conveniently shared between Phoroptor VRx systems.

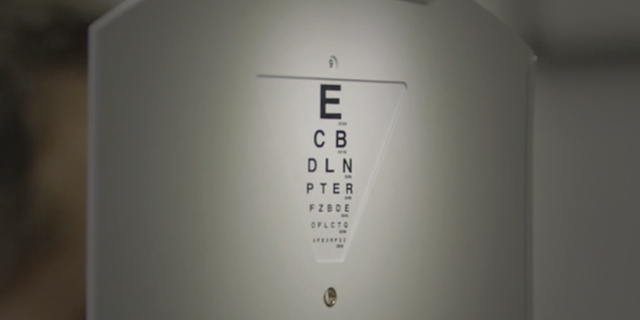

Illuminated near point.

The RotoChart near point card is automatically illuminated, with two available brightness levels, when the reading rod is lowered into position.

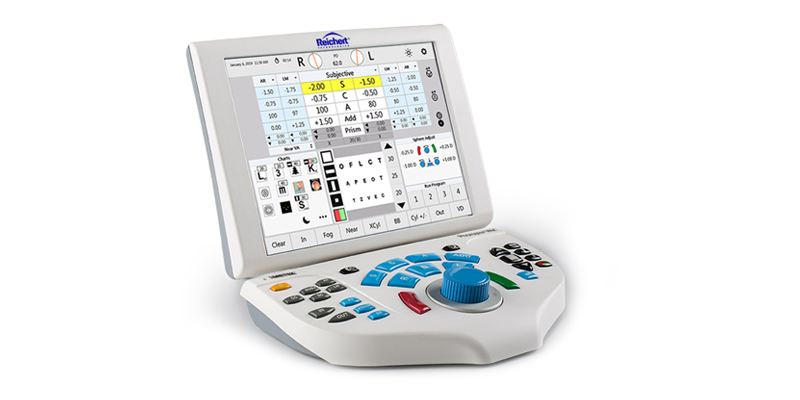

Logical keypad design.

The Phoroptor VRx controller features a logically and ergonomically arranged keypad, designed to enhance the user experience. Buttons are grouped based on functionality for easy access: gray for data, blue for refraction, and black for acuity. Buttons are also LED backlit for better visibility in dimly lit exam rooms.





Multi-function knob.

The Phoroptor VRx multi-function control knob is smooth rotating and has a solid feel comparable to the Ultramatic RX Master™ Phoroptor® dials you know and love, for unmatched control knob versatility.






Quickly compare prescriptions.

With a single touch, switch between final, subjective, unaided, auto refractor, or lensmeter data, allowing your patient to instantly visualize the difference in prescriptions.

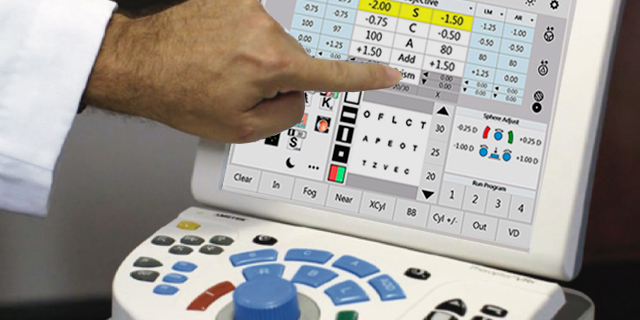

10.4 inch touchscreen display.

You can access all functions and settings of the intuitive user interface, through the integrated 10.4 inch tilting touchscreen display.





Connectivity to pre-screening and acuity devices.

Phoroptor VRx seamlessly connects to Reichert lensmeters, auto refractors, and acuity systems, such as the ClearChart® 4 family of digital acuity systems along with a comprehensive list of non-Reichert compatible devices. (See Specifications).




Bluetooth® comes standard.

 Bluetooth is built into the Phoroptor VRx Central Unit and Reichert Bluetooth adapters (see Specifications) can be paired to connect an external instrument wirelessly.

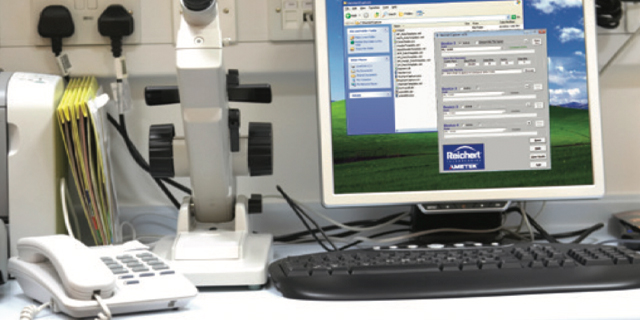

Effortless EMR integration.

Phoroptor VRx integrates with an extensive list of EMR systems, removing the risk of transcription error and increasing patient throughput. Phoroptor VRx can take advantage of an EMR system’s capability of bi-directional communication, allowing you to import and export refraction data.



While you might refer to a refracting instrument as just a "phoropter," the original, trademarked, patented and most trusted name is the Phoroptor from Reichert. We trademarked the name in 1921. The proper spelling is with an “or.” Remember, "refractor" is spelled with an "or" and so is Phoroptor.


Phoroptor is a registered trademark of Reichert, Inc.


Products: Included & Optional
16241 - Phoroptor VRx, Middle Mount
Includes: Phoroptor VRx Head Assembly, Central Unit, Controller
16242 - Phoroptor VRx with Prism, Middle Mount
Includes: Phoroptor VRx Head Assembly, Central Unit, Controller

Standard Included Accessories:
  •  Dust Cover - Phoroptor Head
  •  Dust Cover - Controller
  •  Phoroptor Cable
  •  User’s Guide
  •  Decimal Card Holder or Snellen Card Holder
  •  Power Cord 115V or Power Cord 230V
  •  Card Beam Assembly
  •  Card Illuminator
  •  Face Shield Kit (2 sets)
  •  Quick Reference Card

Optional Accessories:
  •  Thermal Printer
  •  Wireless Dongle Kit 16250 - Bluetooth connection to ClearChart 3P, AL200
  •  Wireless Dongle Kit 16251 - Bluetooth connection to ClearChart 2
  •  Wireless Dongle Kit 16253 - Bluetooth connection to AP250, AL700, RK700
  •  Wireless Dongle Kit 16254 - Bluetooth connection to RK600
  •  Wireless Dongle Kit 16255 - Bluetooth connection to AL500, Computer
  •  Wireless Dongle 16233 - Single Bluetooth dongle w/ null modem paring cable



Specifications:

Phoroptor Head:

Spherical Effects
+17.75 to -22.25 D Steps : 0.25 and 1.0 D

Cylinder Power
-8.0 to +8.0 D
Steps: 0.25 and 1.0 D

Axis Adjustment
0° to 180°
Steps : 1° and 10°

Cross Cylinder Test
±0.25 D

Prismatic Effects (Optional)
0.20 Prism Diopter per eye
Steps: 0.50 Prism Diopter per eye 0.25 Prism Diopter per eye

Corneal Vertex Distance
16 mm

Pupil Distance
50 to 80 mm
Steps: 1 mm binocular

Convergence
400 mm

Height Level of Eyes, adjustment
±3 mm

Leveling
via bubble level

Free Aperture
19 mm

Thickness of Housing at the Viewing Aperture
26 mm

Width x Height x Depth (at PD = 64 mm)
31 x 20.3 x 7.1 cm (12.2 x 8 x 2.8 in.)

Weight With Mount, Without Prism Compensator
4.42 kg (9.75 lb)

Weight With Mount, With Prism Compensator
4.65 kg (10.25 lb)

Weight Without Mount, Without Prism Compensator
3.95 kg (8.70 lb)

Weight Without Mount, With Prism Compensator
4.17 kg (9.20 lb)


Controller with Display
Controller - Width x Height x Depth
23.4 x 4.6 x 16.8 cm (9.9 x 1.5 x 6.9 in.)

Display - Width x Height x Depth
22.4 x 15.7 x 1.5 cm (10 x 7 x 2.8 in.)

Display Size - Diagonal
10.4 in. (1024x768 pixel resolution)

Weight
2.9 kg (6.4 lb)


Central Unit
Physical Specifications:

Width x Height x Depth
20.1 x 8.9 x 26.7 cm (7.9 x 3.5 x 10.5 in.)

Weight

3.2 kg (7.1 lb)

Electrical Specifications:

Input Voltage
100 - 240V~

Frequency
50 - 60 Hz

Current (max.)
60 VA

Fuses
T2AL 250V

Ports (1 each):
Phoroptor
Controller (Keypad)
Projector (Acuity System)
Printer
Instrument 1 I/O
Instrument 2 I/O
EMR Port
Transfer Port



Device Compatibility:
As of February 2019

Lensmeters:

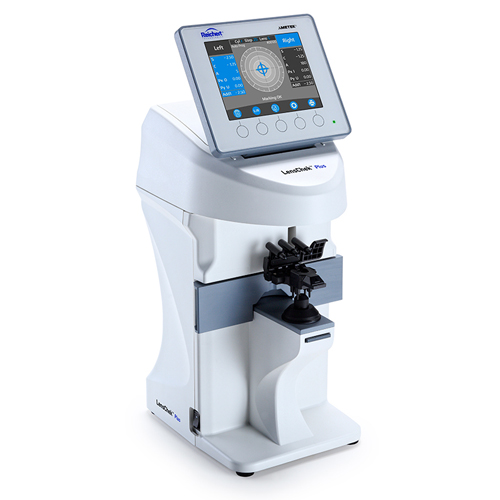

Reichert LensChek Plus

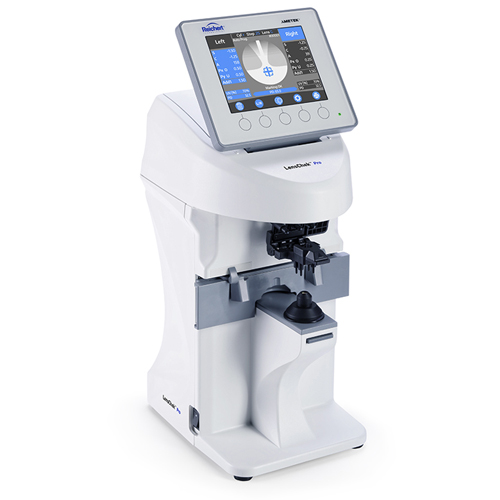

Reichert LensChek Pro
AL200 Auto Lensometer
AL500 Auto Lensometer
AL700 Auto Lensometer
Hoya AL-3100
Humphrey/Zeiss LA-XXX
Huvitz CLM-3100
Nidek LM-600P
Nidek LM-970
Nidek LM-1000P
Nidek LM-1200
Tomey TL-XXXX
Topcon CL-XXX
Visionix/Luneau L70
Visionix/Luneau VX40
Zeiss Visulens 500

Auto Refractors:

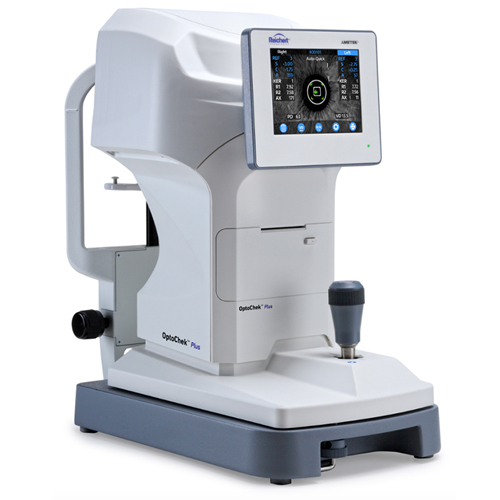

Reichert OptoChek Plus
Reichert RK600
Reichert RK700
Canon R-XX
Canon RK-XX
Canon RK-F1
Canon RK-F2
Humphrey HARK-XXX
Huvitz HRK-XXXX
Huvitz MRK-XXXX
Marco AR-30
Nidek AR-1/ARK-1
Nidek AR-800
Nidek ARK-XXXX
Nidek OPD-Scan II
Nidek OPD-Scan III
Nidek RKT-7700
Nidek Tonoref II
Nikon Retinomax K2
Nikon Retinomax K+3
Nikon Speedy K
Right Medical Retinomax K2
Right Medical Retinomax K+3
Right Medical Speedy K
Tomey RC-800
Tomey TC-4000
Tomey RC-5000
Topcon KR-1
Topcon KR-1W
Topcon KR-800
Topcon KR-800S
Topcon KR-800PA
Topcon KR-8000/8000P
Topcon KR-8800
Topcon KR-8900
Topcon RM-8000
Topcon RM-8800
Topcon RM-8900
Visionix VX-100
Visionix VX-110
Visionix/Luneau L67
Zeiss iProfiler
Zeiss Visuref 100

Projectors:
Reichert ClearChart 4 Series
Reichert ClearChart 3P
Reichert ClearChart 2
Reichert AP250
L29 Typ 17D
M300
M&S Smart System 20/20
Polastar



EMR Compatibility:
As of February 2019
(* denotes bi-directional communication)
Compulink *
Crystal Practice Management *
EMR Logic/Optimed
Epic
EyeMD EMR
Eye Cloud Pro
First Insight Maximeyes *
IFA Systems *
Management Plus
MD Intellesys
Medflow (Allscripts)
My Vision Express
Next Gen
OD Link
Officemate/Eyefinity *
Practice Director
Revolution EHR
Visual Eyes *
TitleA Skeptic Embraces Digital Refaction
TitleFaster, More Efficient Exams
Title
Document
Download Link
A Skeptic Embraces Digital Refaction
DocumentOM-08-2016
Download Link Download
Faster, More Efficient Exams
DocumentOM-05-2015
Download Link Download
TitlePhoroptor® VRx - Digital Refraction System - Brochure
Title
Document
Download Link
Phoroptor® VRx - Digital Refraction System - Brochure
Document16241-110-D
Download Link Download
TitleNearpoint Rotochart - User's Guide
TitlePhoroptor® Breath Shield - Installation Instructions
TitleWireless Dongle Kit 13778 – ClearChart 4 & AcuityChek™ – User’s Guide
TitleWireless Dongle Kit 15171 - LensChek® and OptoChek® - User's Guide
TitleReichertCapture® EMR Interface Software - User's Guide
TitlePhoroptor® VRx - Quick Reference Card - English
TitlePhoroptor® VRx & VISUTRON 900 Touch Breath Shield Instruction Sheet
TitleWireless Dongle 16233 - Single Bluetooth dongle - User's Guide
TitleNearBright® Illuminated Near Vision Kit - User's Guide
TitlePhoroptor® VRx - Digital Refraction System - User's Guide
TitleVISUTRON 900 Touch - User's Guide - English
TitleWireless Dongle Kit 16250 - ClearChart 3P, AL200 - User's Guide
TitleWireless Dongle Kit 16251 - ClearChart 2 - User's Guide
TitleWireless Dongle Kit 16253 - AP250, AL700, RK700 - User's Guide
TitleWireless Dongle Kit 16254 - RK600 - User's Guide
TitleWireless Dongle Kit 16255 - AL500, Computer - User's Guide
TitleCP-D/CP-M Circular Polarizer for Phoroptor® - User’s Guide
TitleVISUTRON 900 Touch - User's Guide - German
TitlePhoroptor® VRx - Digital Refraction System - User's Guide - Spanish
TitlePhoroptor® VRx - Quick Reference Card - Spanish
Title
Document
Download Link
Nearpoint Rotochart - User's Guide
Document11999-101-K
Download Link Download
Phoroptor® Breath Shield - Installation Instructions
Document11636-105-A
Download Link Download
Wireless Dongle Kit 13778 – ClearChart 4 & AcuityChek™ – User’s Guide
Document13778-101-C
Download Link Download
Wireless Dongle Kit 15171 - LensChek® and OptoChek® - User's Guide
Document15171-101-C
Download Link Download
ReichertCapture® EMR Interface Software - User's Guide
Document16000-101-G
Download Link Download
Phoroptor® VRx - Quick Reference Card - English
Document16212-105-A
Download Link Download

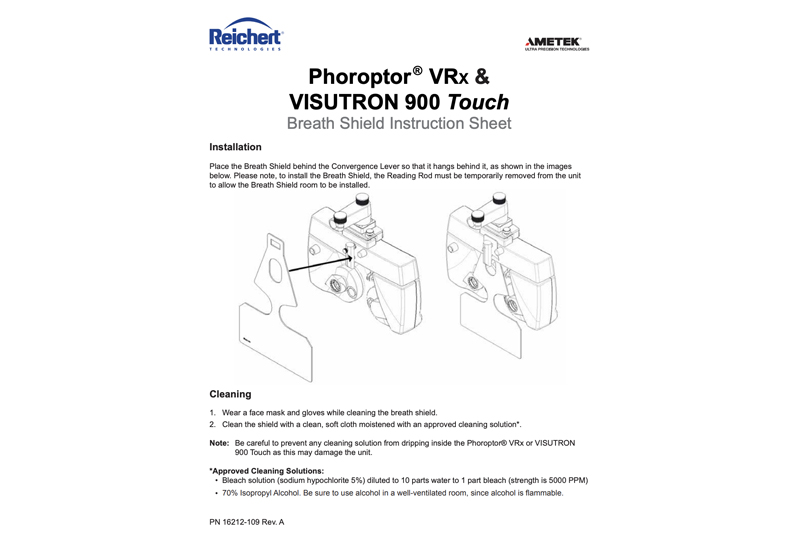

Phoroptor® VRx & VISUTRON 900 Touch Breath Shield Instruction Sheet
Document16212-109-A
Download Link Download
Wireless Dongle 16233 - Single Bluetooth dongle - User's Guide
Document16233-101-C
Download Link Download

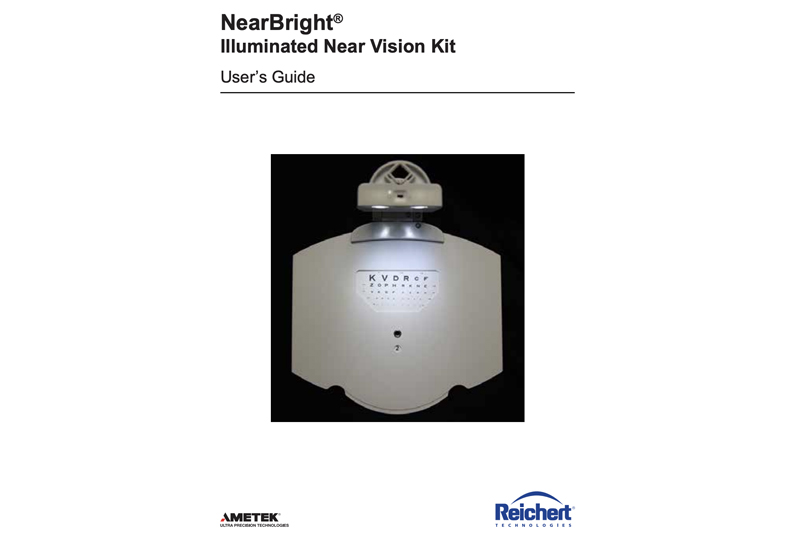

NearBright® Illuminated Near Vision Kit - User's Guide
Document16238-101-D
Download Link Download
Phoroptor® VRx - Digital Refraction System - User's Guide
Document16241-101-G
Download Link Download
VISUTRON 900 Touch - User's Guide - English
Document16243-101-H
Download Link Download

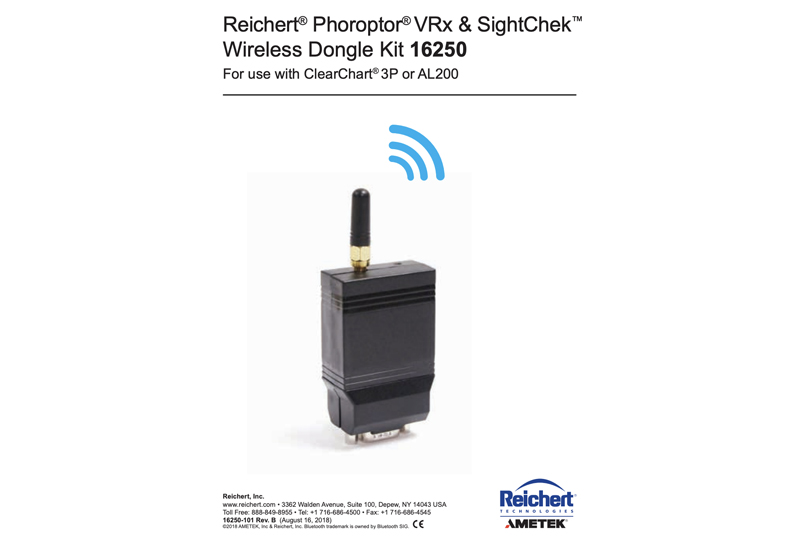

Wireless Dongle Kit 16250 - ClearChart 3P, AL200 - User's Guide
