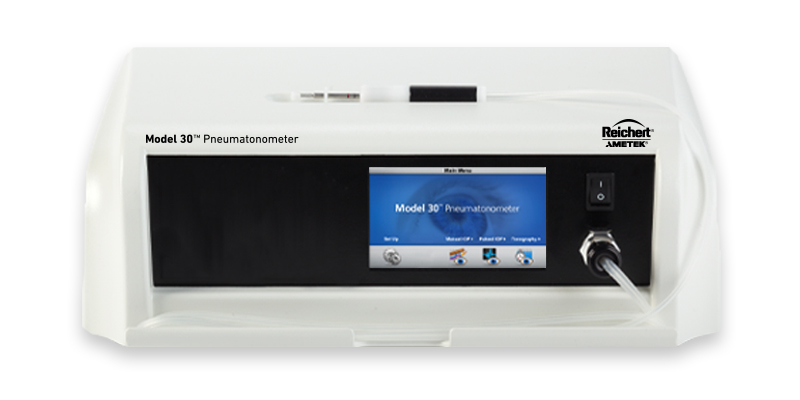

Model 30™

Pneumatonometer

The Reichert Model 30™ Pneumatonometer is an easy to use instrument that provides fast and accurate tonometry and optional tonography functions. The probe tip, which floats on an air bearing, is gently touched to the anesthetized cornea and a precisely regulated flow of filtered air applies force to the tip. A small (5 mm diameter) fenestrated membrane permits the air to flow through vents in the tip until it conforms to the shape of the cornea. Increasing pressure is continually applied to the cornea until the force being applied is equal to the pressure in the anterior chamber. When these forces are in balance a pneumatic sensor records the intraocular pressure. In pulse tonometry mode, the ocular pulse waveform is charted and recorded along with IOP.
  • Details
  • Specs
  • Brochures
  • Instructions
  • Related Items
Easy to Use

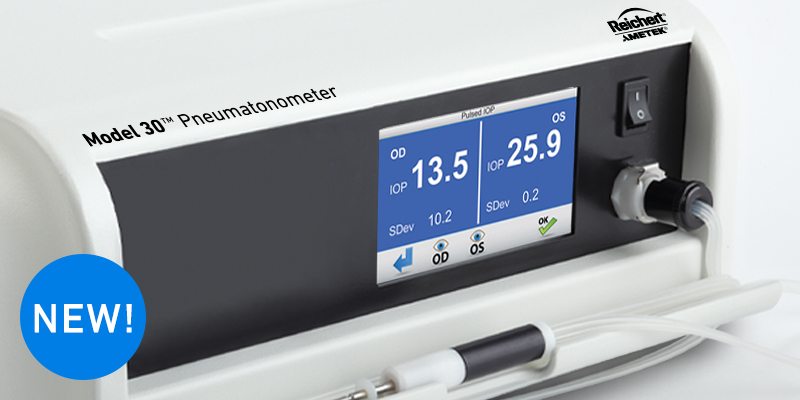

Doctors and technicians agree that the Model 30 Pneumatonometer is easy to use. The all-new touch screen interface features an easy-to-use icon-based operating system enabling even inexperienced users to make measurements in seconds. The full color display guides the operator through the measurement process and displays readings. The optional footswitch (available with the tonography kit - catalog number 16033) makes obtaining measurements even easier, freeing the operator to concentrate on handling the sensor probe. The integrated chart strip printout can be placed in patient files as a record of the diagnostic procedure.

Multi-Modality
The Model 30 Pneumatonometer provides ocular pulse amplitude measurements in addition to tonometry measurements. The optional tonography mode enables measurement of the aqueous outflow efficiency of the trabecular meshwork.

Clinically Trusted
The Model 30 Pneumatonometer is trusted worldwide and is frequently the instrument of choice of specialists and researchers. Research indicates that measurements obtained with the Model 30 Pneumatonometer are less affected by corneal properties than other methods of tonometry.
Catalog Number: 16030

Weight: 10 lbs., 4.54 kg

Height:
5.25 in., 13.3 cm

Width: 14.0 in., 35.6 cm

Depth: 10.5 in., 26.7 cm

Power: 100 V, 120 V or 230 V

Air Pump: 14 PSI, 3,000 hour life

Probe: Pneumatic

IOP Range: 5-80 mmHg
TitleModel 30™ Pneumatonometer - Brochure
Title
Document
Download Link

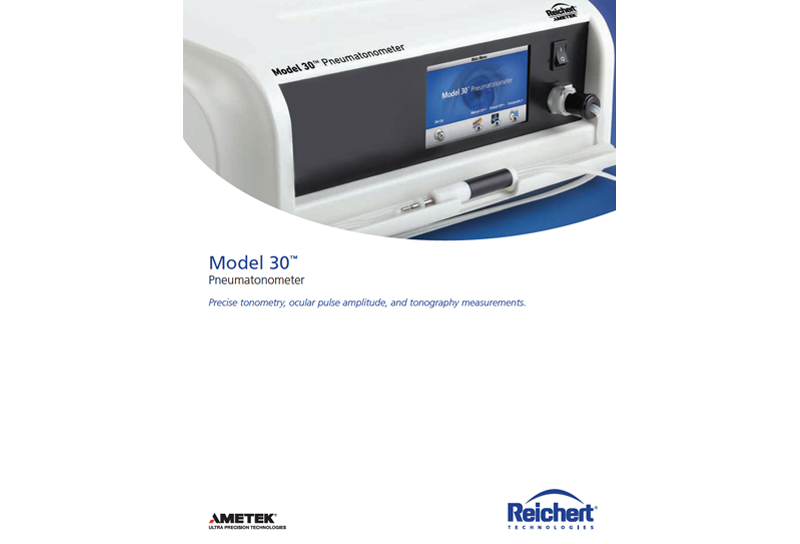

Model 30™ Pneumatonometer - Brochure
DocumentModel30-0211
Download Link Download
TitleModel 30™ Pneumatonometer - User's Guide
TitleModel 30™ Pneumatonometer - Shipping Bracket Installation Instructions
TitleCleaning & Disinfection Matrix
Title
Document
Download Link
Model 30™ Pneumatonometer - User's Guide
Document16030-101-K
Download Link Download
Model 30™ Pneumatonometer - Shipping Bracket Installation Instructions
Document16030-105-A
Download Link Download
Cleaning & Disinfection Matrix
DocumentSB-03-2021
Download Link Download
