iPac®

Pachymeter

The Reichert® iPac® is the most feature-rich handheld pachymeter available. It features Bluetooth® wireless connectivity, one-button navigation, a rotating color LCD screen and a rechargeable lithium-ion battery. iPac is backed by an industry leading 3-year warranty.
  • Details
  • Videos
  • Specs
  • Brochures
  • Instructions
  • Software

  • Related Items


iPac Pachymeter Product Overview Video

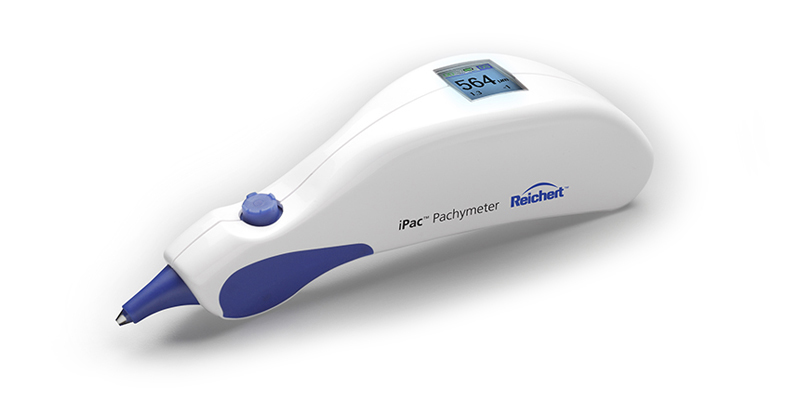

The Reichert® iPac® Pachymeter is the most feature-rich handheld ultrasound pachymeter available. iPac is an easy-to-use, lightweight handheld pachymeter with a comprehensive set of features to optimize practice efficiency. iPac features an advanced filtering algorithm that ensures accurate central corneal thickness (CCT) measurements over a wide range of corneal thicknesses. With the intuitive user interface, exams are more efficient for you and more comfortable for your patients.





Bluetooth® Connectivity.

Send measurement data directly to your EMR system or to the optional wireless printer via Bluetooth Connectivity. Wireless communication eliminates the risk of transcription error and makes for a more efficient measurement process.





One Button Control.

Easily access all functions of iPac through a simple single, 5-way control button. Wake up iPac by pressing the button once, then again to put iPac into measurement mode. Effortlessly switch between OD/OS measurements by toggling left and right.

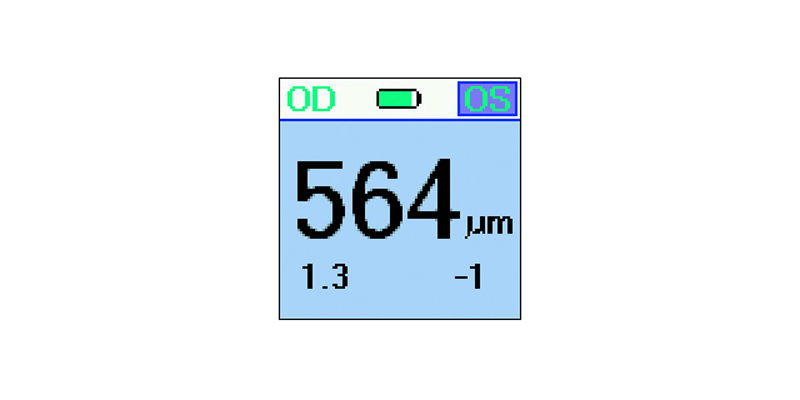

Rotating Color LCD.

The large, easy-to-read display automatically rotates to be viewed in any orientation. The operator is able to read the measurement data while iPac is being used on a patient in any position.





Rechargeable Battery.

The rechargeable Lithium-ion battery is designed to have a long lasting charge ensuring iPac is always ready-to-use. Charge iPac using the provided USB cable, or the convenient optional charging cradle.

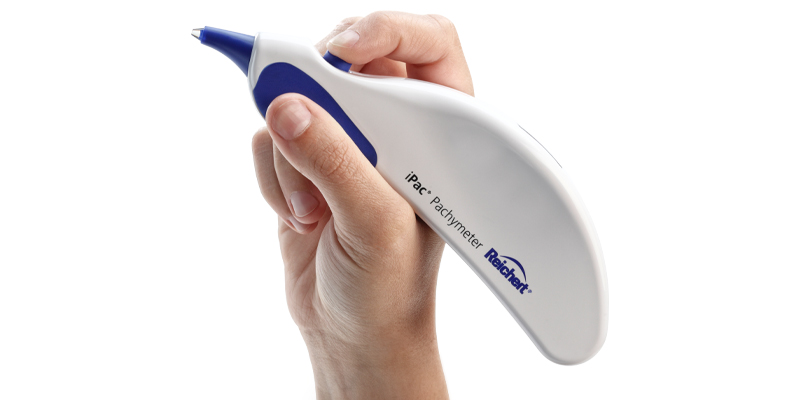

Ergonomic Design.

Designed for left or right handed use, the lightweight iPac fits comfortably in any operator’s hand. The ergonomical design of iPac is based on our award winning Reichert® Tono-Pen AVIA® Handheld Tonometer.





ADA Eligibility.

The purchase of iPac may qualify for ADA tax benefits. Refer to Americans with Disabilities Act, Title 26, Internal Revenue Code, Section 44.





Unmatched Warranty.

You can rest assured that your practice will be protected with an industry leading 3 year warranty starting from date of purchase. iPac is made in the USA.
Catalog Numbers
16040 - iPac Pachymeter - Includes Carrying Case and USB Wall Charger
16041 - iPac Charging Cradle
16042 - iPac Rechargeable Lithium Ion Battery
16043 - Portable Bluetooth Printer

Specifications
Measurement Range: 200 - 1000 microns
Accuracy: +/- 5 microns
Resolution: 1 micron
Ultrasound Frequency: 10.5 MHz
Dimensions: 7.05 L x 1.46 W x 2.20 H inches (179 x 37 x 56 mm)
Weight: 3.53 oz (100 g)
Power: Lithium Ion Battery
TitleiPac® Pachymeter - Brochure
Title
Document
Download Link
iPac® Pachymeter - Brochure
Document16040-110-B
Download Link Download
TitleReichertCapture® EMR Interface Software - User's Guide
TitleiPac® Pachymeter - User's Guide
TitleCleaning & Disinfection Matrix
TitleiPac® Pachymeter - User's Guide - Spanish
TitleiPac® Pachymeter - User's Guide - Portuguese
Title
Document
Download Link
ReichertCapture® EMR Interface Software - User's Guide
Document16000-101-G
Download Link Download
iPac® Pachymeter - User's Guide
Document16040-101-L
Download Link Download
Cleaning & Disinfection Matrix
DocumentSB-03-2021
Download Link Download
iPac® Pachymeter - User's Guide - Spanish
Document16040-101-SPA-B
Download Link Download
iPac® Pachymeter - User's Guide - Portuguese
Document16040-101-POR-C
Download Link Download
TitleReichertCapture EMR Interface Software v 1.4.0 (.zip)
Title
Document
Download Link
ReichertCapture EMR Interface Software v 1.4.0 (.zip)
DocumentRC-EMR
Download Link Download
